LG20
Scrubber Controls ► LG20
BMD/Valves ► LG20

BMD Glass Liquid Level Gauges

LG20, BMD Glass Liquid Level Gauges

  "For information on specifications and prices, please contact us"

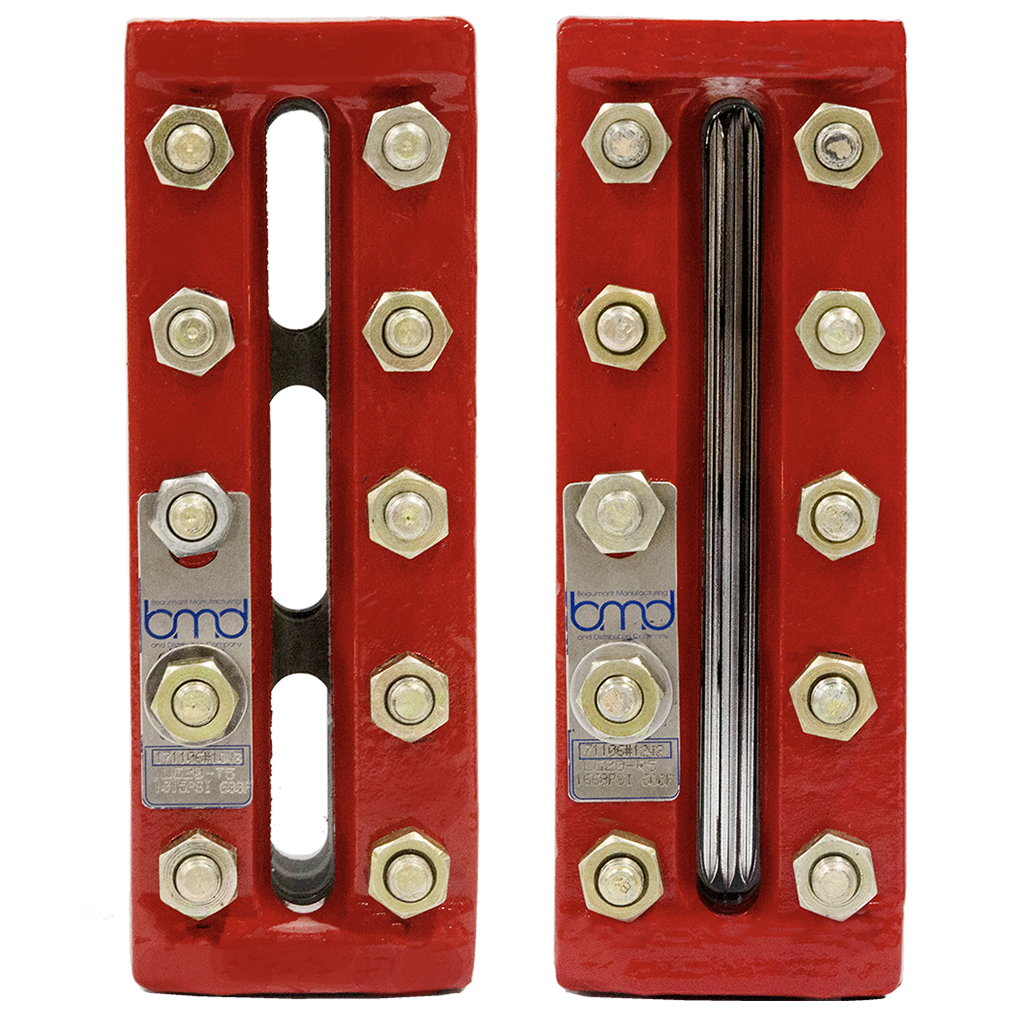

The LG20 Glass Liquid Level Gauge is a rugged flat glass gauge for mid-range pressure temperature applications.

  • Tempered glass conforms to BS3463, DIN 7081.  All parts ASTM grade and listed in ANSI 31.3
  • Gauges hydrostatically tested to 1.5 times the rated pressure at 100° F (38° C)
  • Recessed gasket seat in chamber and cover prevents leaks often caused by shifting gaskets
  • Liquid-Gas or Liquid-Liquid Interface Applications: Available in reflex or transparent styles to satisfy all application requirements
  • Wetted parts conform to NACE MR-01-75 specifications for sour gas service

 Download Catalog

Overview

The LG20 Glass Liquid Level Gauge’s  standard construction includes a solid one-piece chamber machined from carbon steel with covers, toughened glass and chrome-molybdenum bolts and nuts. All metal parts are rustproofed. Recessed gasket seat prevents movement and ensures leak-free service.
