OPL Series
Custom Control Panels ► OPL Series

Pressure Gauges

OPL Series, Pressure Gauges

  "For information on specifications and prices, please contact us"

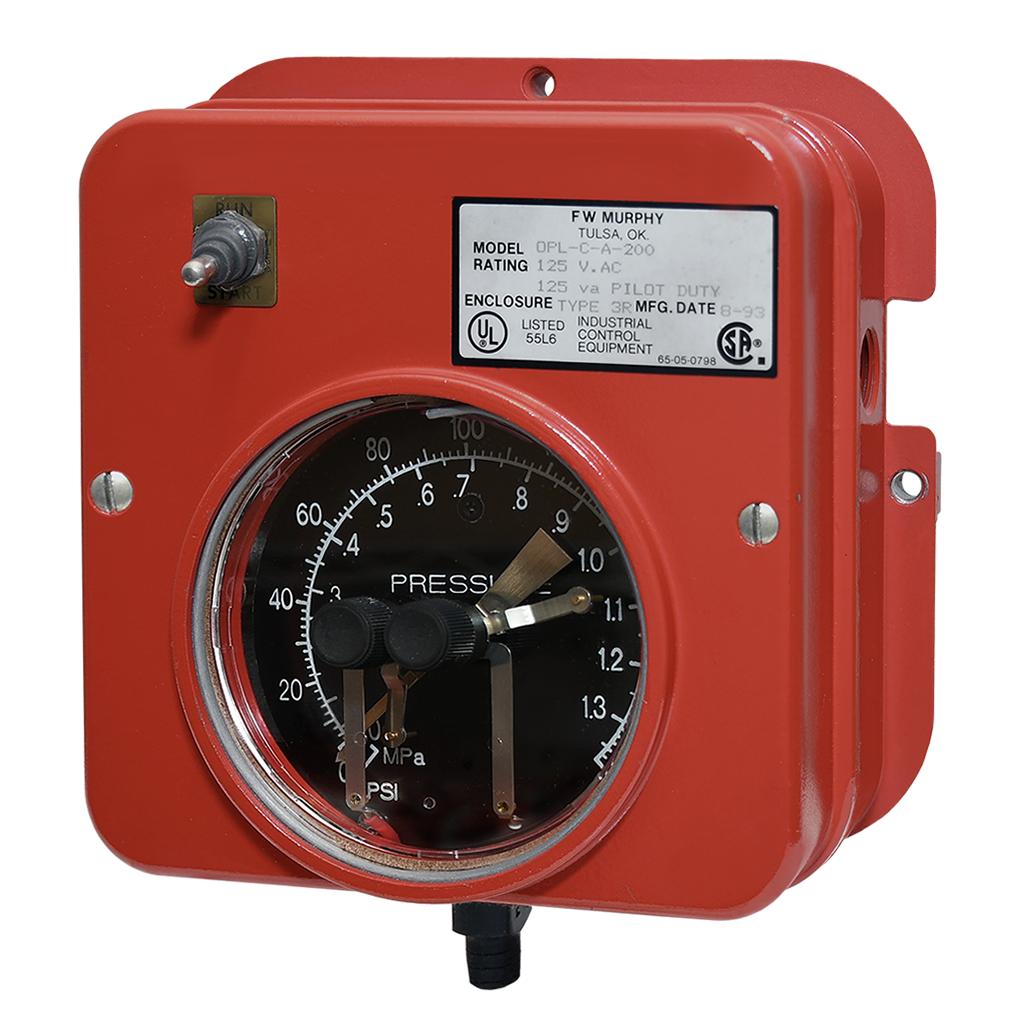

The OPL Series pressure gauge instruments are combination pressure-indicating gauges with adjustable low and high limit switches.

  • Combination indicating gauge and critical pressure limit switches
  • High and low pressure limit contacts are visible and adjustable
  • Panel- and surface-mount versions
  • Indicating-only gauge available
  • Latching control relay versions available

 Download Catalog

Overview

The OPL Series limit switches can be wired directly to electric pilot circuits to operate alarms, shutdown or the start/stop of engines and electric motors. Surface-mount or panel-mount enclosures are available for most versions. All versions feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from the front of the gauge. Limit contacts have self-cleaning motion to enhance electrical continuity.

Other versions available:

  • Gauge only without contacts
  • Gauge instrument with built-in latching relay for start-stop operations.
