CV10S
Compressor Controls ► CV10S
Scrubber Controls ► CV105
BMD/Valves ► CV10S

BMD Control Valves

CV10S, BMD Control Valves

  "For information on specifications and prices, please contact us"

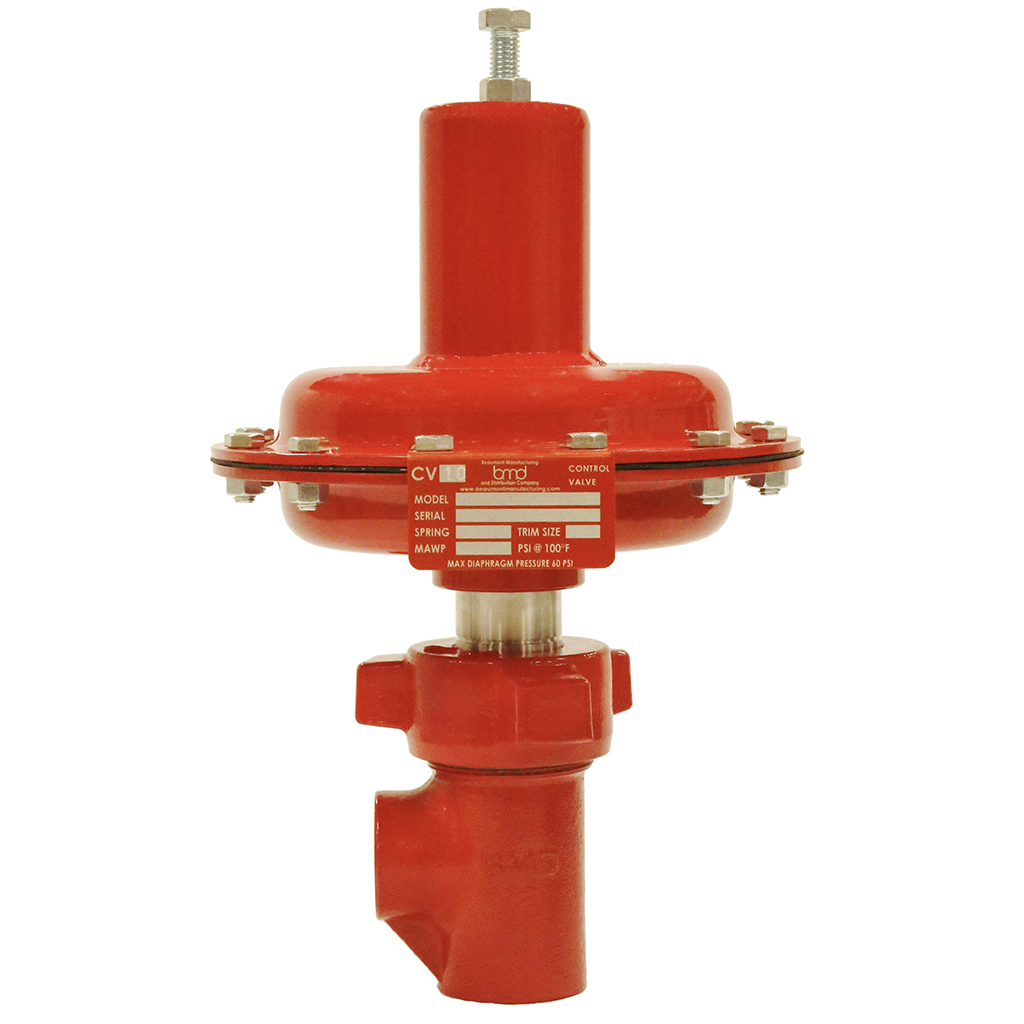

The CV10S close-coupled control valves are compact, cage-guided valves also know as dump valves.

  • Hammer union makes maintenance easy
  • Valves available in a variety of material options and trim sizes
  • NACE option available for sour service

 Download Catalog

Overview

The CV10S is ideally suited for a wide range of applications such as pressure control, level control and flow control. Typical installations include separators, scrubbers, wellheads and other production equipment.

The hammer union makes maintenance easy by allowing the topworks to be removed without taking the valve out of line. This feature reduces the amount of time needed to inspect and replace the valve trim.
