PC88
Compressor Controls ► PC88
BMD/Valves ► PC88

BMD Pressure Pilots

PC88, BMD Pressure Pilots

  "For information on specifications and prices, please contact us"

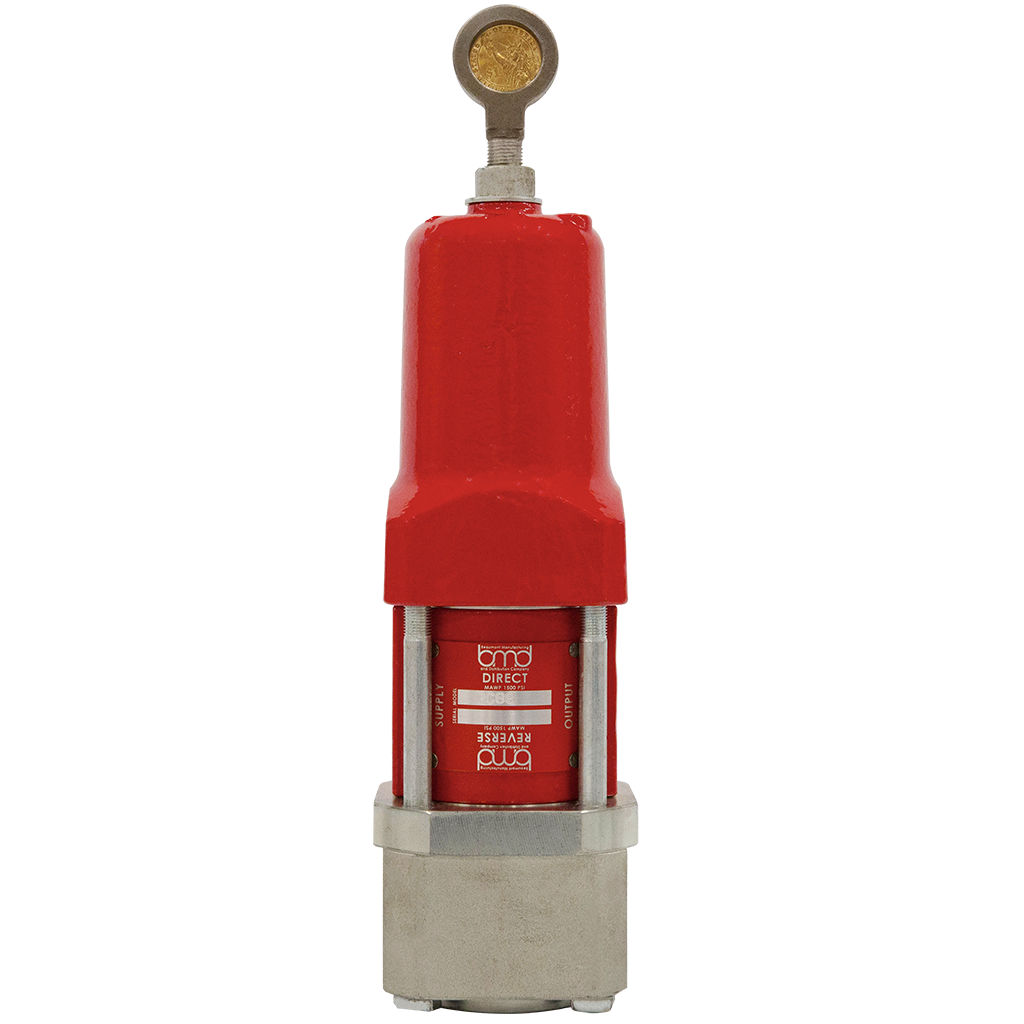

The PC88 is a rugged, economical pressure control pilot. It can be used anywhere pressure control of high pressure gas is required.

  • PC88 available as direct acting or reverse acting
  • Action is field reversible
  • NACE option available

 Download Catalog

Overview

When using PC88 in conjunction with a control valve, it may serve as either a back pressure regulator or pressure reducing regulator. It can also be used to send a signal when the sense pressure goes above or falls below a given set point. The PC88 Direct functions by sensing a high-pressure signal and outputting a low-pressure signal when the high-pressure signal rises above the set point. The PC88 Reverse outputs a low-pressure signal when the high-pressure signal falls below the set point.
